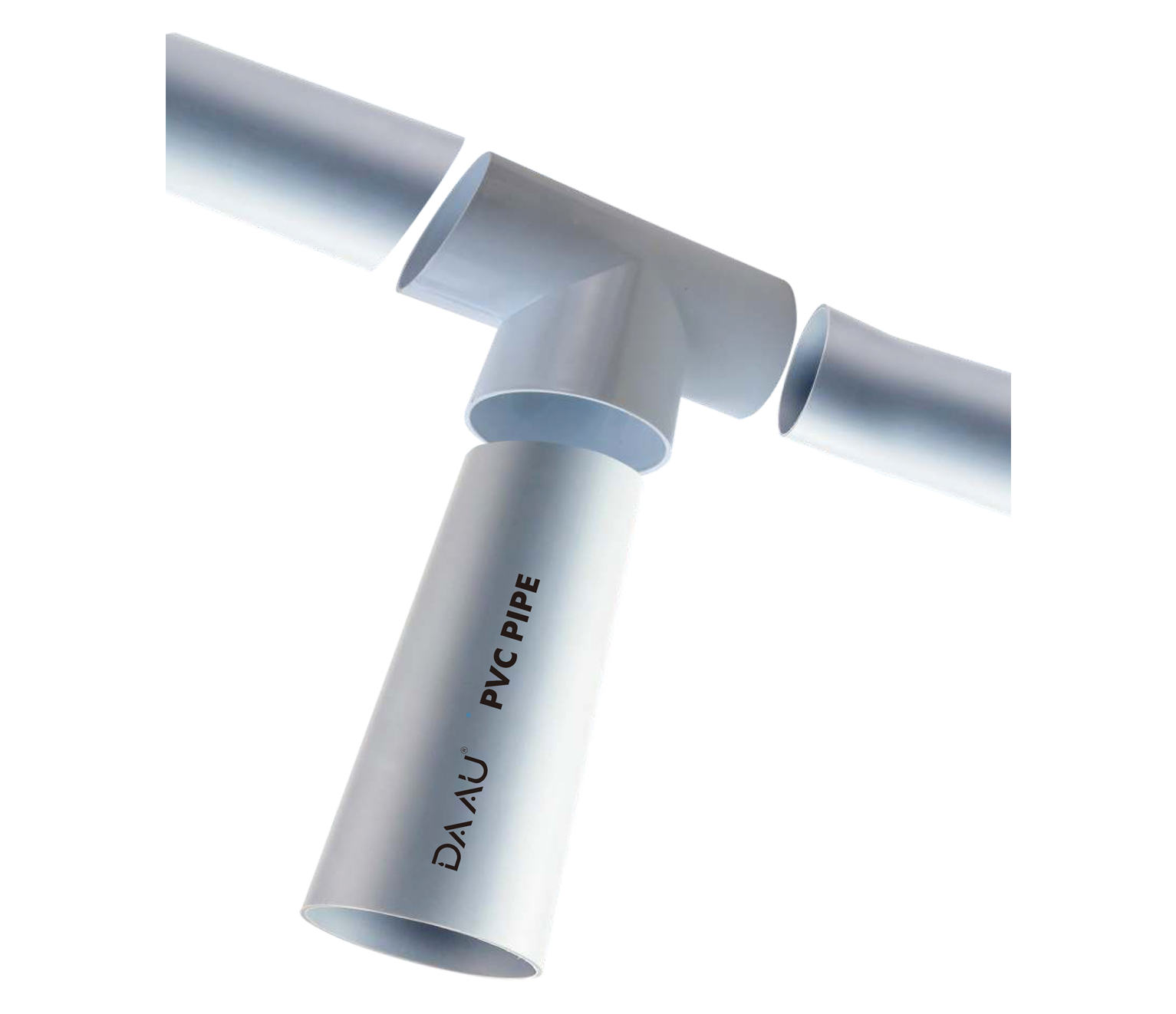

DAAU UPVC Agriculture Pipe & Fitting

Material:

• PVC Compound Grade Equivalent to PVC 1120 / 2120

Sizes:

• Pipes : 50 mm to 250 mm

Length:

• 6 Mtrs.

Features and Properties:

• Corrosion free pipes
• High Flow Rates – No Chocking in daau pipes
• UV Stabilized pipes
• Long Life pipes
• Light Weight pipes
• Cost Effective pipes
• Quick installation pipes
• Maintains free pipes

Installation Guide:

Installation method of DAAU® Rigid PVC Pipe System

DAAU® PVC Pipes are very convenient & simple to install.

DAAU® PVC Pipes can be pre-fixed & laid to the desired length or can be fixed on the site as per requirement.

Fix the joints using Solvent cement. Provide air valves at regular interval of 300 mtrs.

on plane area and at all sharp turns. Use fittings of proper size & type where ever necessary.

Size & Range : Available in Size 50mm to 250mm & 2.5 Kg. To 6 Kg. Pressure

Precautions

• Use non return valves for water raising system
• Use couplers if the length is too long. It also assists for maintenance.
• Use proper adapter while fixing with the existing GI / CI or AC pipe system.
• Provide support at joints & at regular distance. Avoid inclined bends.
• Prefer underground or ducted system to increase life.

Areas of Application

• Pipes for Sturdy construction Site
• Pipes for Supply of potable water
• Pipes for Disposal of acids, chemical, toxic wastes
• Pipes for Agricultural Pipe lines for potable water supply.
• Pipes for Main & Submain line for drip irrigation system.
• Pipes for Drain & Sewer systems in residences, commercial complexes, resorts, hospitals, academic institutes and industries etc.

Advantages

• Self socket at one end & plain at another end
• Fits easily without needing couplers (Solvent Cement Joint)
• Economical, lightweight, easy to handle …
• Selfit sockets are formed with high precision on specially developed sophisticated machines.
• 50% saving in installation time, as compared with plain ended pipes and loose couplers.
• The number of joints is reduced by 50% resulting in substantial saving in labour costs.
• More Economical than conventional plain ended pipes with loose couplers.
• Good hydraulic properties due to smooth interior pipe surfaces.
